Custom Quartz Glass Manufacturer
At Lighting, we provide a full suite of custom quartz glass fabrication services, designed to meet the complex demands of today’s advanced industries. From raw fused quartz and fused silica sheets to micro-structured optical components, our capabilities span cutting, polishing, drilling, bonding, coating, and assembly, all under one roof.
Whether you’re building next-generation semiconductor wafers, laser systems, microfluidic devices, or high-temperature instruments, we offer the precision, material control, and engineering insight to bring your designs to life — with repeatable quality and fast lead times.
Custom Quartz Glass Products

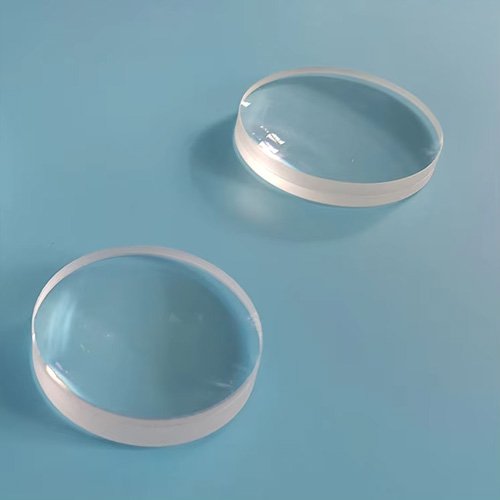

Quartz Glass Observation Window
Our quartz observation window is made from high-purity quartz, offering excellent clarity, thermal resistance, and chemical durability. Ideal for high-temperature or vacuum systems, it enables safe and clear monitoring. Custom sizes and shapes are available.

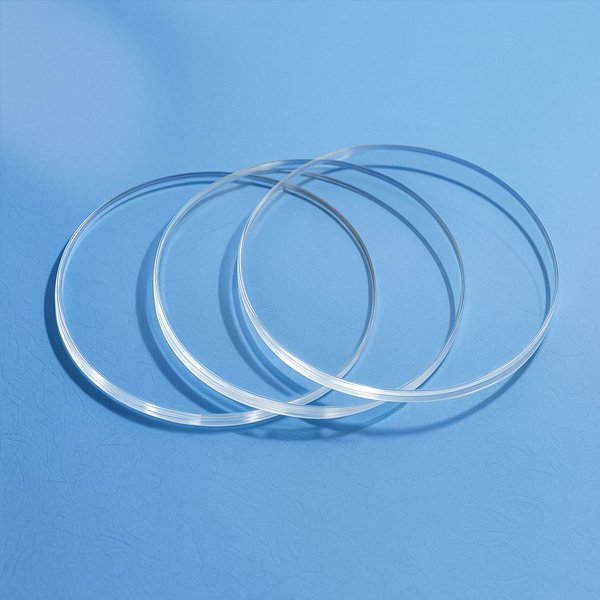

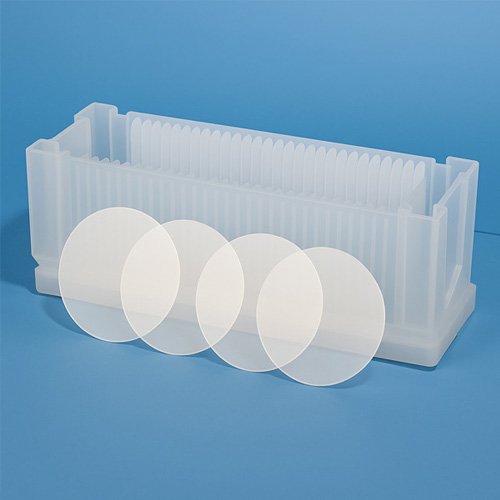

Quartz Glass Wafer
Our quartz glass wafer is crafted from ultra-pure fused quartz, delivering high thermal stability, excellent optical clarity, and low thermal expansion. Perfect for semiconductor, MEMS, and optical applications. Custom diameters and thicknesses available.
Quartz Plane Mirror
Our quartz plane mirror features high-purity quartz with precision-polished surfaces and reflective coatings. It offers excellent flatness, thermal resistance, and durability, making it ideal for lasers, optics, and scientific instruments. Custom sizes and coatings available.

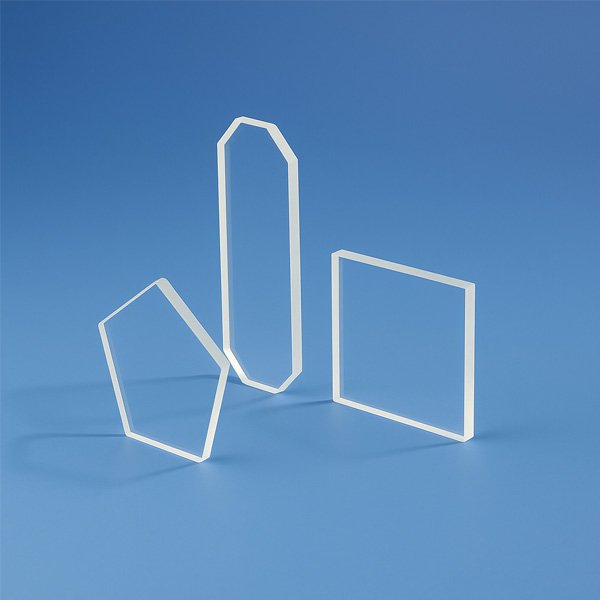

Quartz Plate
Our quartz plate is made from high-purity fused quartz, offering excellent thermal stability, optical clarity, and chemical resistance. Suitable for semiconductor, optical, and industrial use. Custom dimensions and surface finishes available.

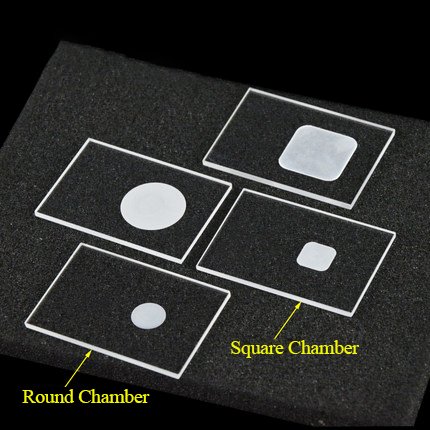

Quartz XRD Sample Holder
High-purity quartz sample holder designed for X-ray diffractometry (XRD) applications. With a 0.5mm depth powder chamber, it ensures minimal background interference and excellent chemical resistance. Ideal for precise positioning and analysis of powder samples under X-ray.
Custom dimensions and designs available for various diffractometer models.

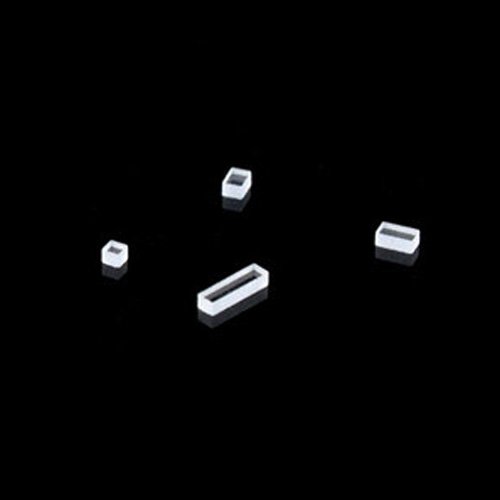

Quartz Ultra Small Plate
Made from high-purit y UV-grade quartz, this ultra small plate offers excellent transmission in the deep UV range, along with high thermal and chemical resistance. Ideal for micro-optics, UV sensors, and precision instruments. Custom sizes available.
Quartz Glass Processing Capabilities
Optical Polishing
Our polishing services meet strict optical specifications for laser-grade or scientific surfaces:
Single-side or double-side polishing
Surface roughness: Ra < 10 nm, flatness up to λ/10
Suitable for optical substrates, UV transmission windows, and photomask carriers
Precision Cutting
We offer CNC machining, waterjet, and laser cutting of quartz glass plates and wafers to tight dimensional tolerances. Our systems support:
Complex geometries based on CAD drawings
Straight edges, circular profiles, slotted channels
Size range: from <10 mm parts up to 400 mm × 500 mm sheets
Tolerance: down to ±0.02 mm
Wafer-Level Processing
- Quartz wafers: 2″, 4″, 6″, 8″, and custom sizes
- Wafer dicing, backgrinding, edge polishing
- Bonding-ready substrates with ultra-clean surfaces
- Custom wafer thicknesses from 0.2 mm to 10 mm
Micro Drilling & Slotting
We perform ultra-fine machining of quartz substrates:
Hole diameters from 50 μm to several mm
Through-holes, blind holes, slots, channels
Drilled via femtosecond laser or ultrasonic methods
Used in microfluidics, sensor ports, MEMS substrates
Various Uses of Quartz Glass
Carrier wafers, etch shields, UV-transparent masks
Laser windows, AR-coated substrates, spacers
Microstructured flow cells, organ-on-chip substrates
Quartz tubes, reaction vessels, and viewports
Optical cuvettes, spectroscopy windows, sensor interfaces
Why Choose Us for Your Custom Quartz Glass Solutions
15+ years of experience in technical glass machining
In-house workshop with CNC, polishing, bonding, and cleanroom coating lines
Fast prototype-to-production workflows
Custom solutions backed by engineering consultation
Export packaging and global delivery options
