What is a Quartz V-Groove Substrate?

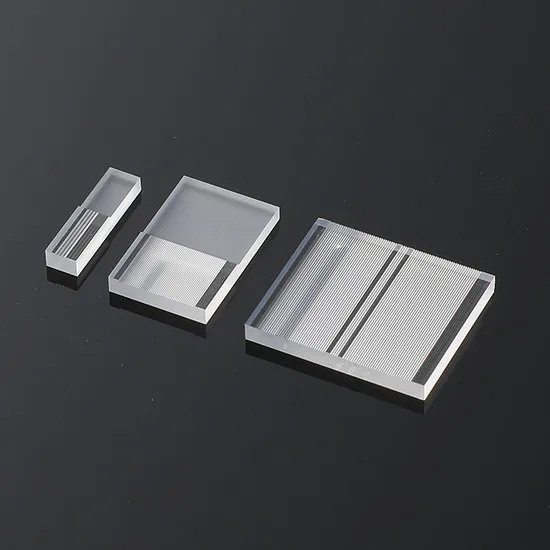

Quartz V-groove substrates are ultra-high precision structures etched or machined into high-purity quartz glass. These substrates are designed to accurately align optical fibers with micron or sub-micron tolerance, making them essential for use in photonic integrated circuits, planar lightwave circuits (PLC), and fiber array units (FAU). Our Quartz V-Groove Substrate ensures stable optical coupling and high alignment accuracy, ideal for optical communication systems.
Custom V-Groove Glass Machining Capabilities
Lighting provides precision quartz machining services to create customized V-groove structures with exacting specifications:
- Material: High Purity Quartz Glass
- Shape Size: 1–100mm
- Standard Pitch Options: 0.127mm, 0.250mm, 0.500mm
- Channel Count: 4, 8, 16, 32, 48, 64, 128, 192
- Pitch Tolerance: ±0.0005mm

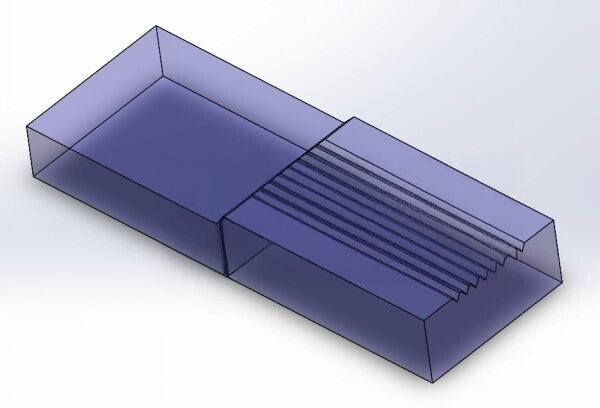

- Structure Types: Equal pitch, unequal pitch, unequal depth
Each fiber array glass substrate is produced using ultra-precision glass machining techniques, including grinding, polishing, and photoelectric measurement systems to ensure consistency and optical alignment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | High Purity Quartz Glass |
| Standard Pitch | 0.127 / 0.250 / 0.500 mm |
| Channel Count | 4 / 8 / 16 / 32 / 64 / 128 / 192 |
| Pitch Tolerance | ±0.0005 mm |
| Shape Size | 1–100 mm |
| Structure Types | Equal / Unequal Pitch & Depth |
As a leading V-Groove Manufacturer in China
Lighting offers full customization options:
- Tailored channel counts and pitch settings
- Multiple V-groove geometries (rectangular, trapezoidal)
- Prototyping to mass production scalability
- Fast lead time for urgent fiber array custom requests
We work closely with engineers and purchasing managers to deliver exact-fit optical fiber V-groove components.
Why Choose Lighting as Your V-Groove Supplier?
Lighting is a trusted precision glass manufacturer in China, specializing in the fabrication of custom optical glass components for enterprise applications. We offer:
- Rich experience in ultra-precision glass V-groove fabrication
- Advanced glass cutting and polishing equipment
- In-house quality inspection and metrology systems
- OEM services for global customers
With a focus on enterprise-level optical communication solutions, our custom V-groove for fiber coupling helps reduce insertion loss and improve system reliability.
Applications in Optical Communication

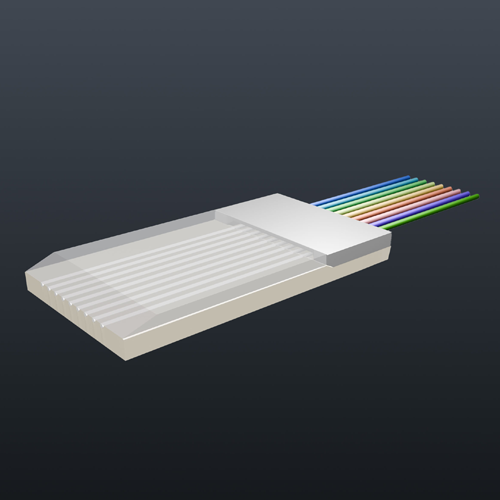

Our custom Quartz Glass V-groove Substrates are extensively used in the optical communication industry. They are a core component in Optical Fiber Arrays and PLC Splitters, enabling low-loss fiber coupling and reliable signal transmission. Whether in data centers, FTTH networks, or photonic packaging, our V-Groove Substrates support complex optical fiber routing and alignment.
Use cases include:
- Optical fiber array alignment
- PLC chip coupling
- Fiber optic transceivers
- Wavelength division multiplexing (WDM) systems
Request a Quote for Quartz V-Groove Substrates
Looking for a reliable supplier of precision Quartz V-Groove Substrates for optical fiber applications? Lighting provides full technical support, flexible production capacity, and competitive pricing.
Contact us now to discuss your project or submit your drawings for a fast quotation.
